High Efficient Anhydrous Welding Tube Mill Machine Aluminum Strip Pipe Making Machine

High Efficient Aluminum Strip Tube Pipe Making Machine

1. The equipment stability is extremely excellent.

2. The equipment uses high-frequency anhydrous welding process.

3. According to customer requirements produce various types of insulting glass aluminium spacer bar.

4. Good quality, low price.

5. Responsible for the installation and debugging assembly line.

6. After-sale guaranteed, if there are any problems, you can timely contact .

Standard configuration:

1. Uncoiler: Mechanical tension bridle manual adjustment.

2. Horizontal and vertical holder: Passed heat treatment to make black. The holder will have rust protection when used.

3. Bearing: Used deep groove ball bearing

4. Welding: Argon welding machine (500A).

5. Grinding head: Manual by hand to debugging.

6. Cutting machine: Abrasive cutting machine.

7. Drive motor used the Siemens brand, the grinding motor used the Kaiyuan brand.

Basic information

1 .Raw material

Row material: Carbon Steel, Cold or Hot Rolled pre slit strip coils

Yield strength : Max 350 MPa

Coil width: 240mm – 480 mm

Coil O.D.: 1300mm –2200 mm

Coil I.D: 508mm-610 mm-760mm

Coil weight : Max 10tons

2. Finish Products

Square tube: Min 60mmx60 mm, max 120mmx120 mm

Rectangle tube: Min 60x80 mm, max 80x160mm

Wall thickness square & rectangle tube: 1.8mm– 6.0mm

anhydrous welding tube mill machine

weld aluminum strip tube mill machine

anhydrous welding pipe mill machine

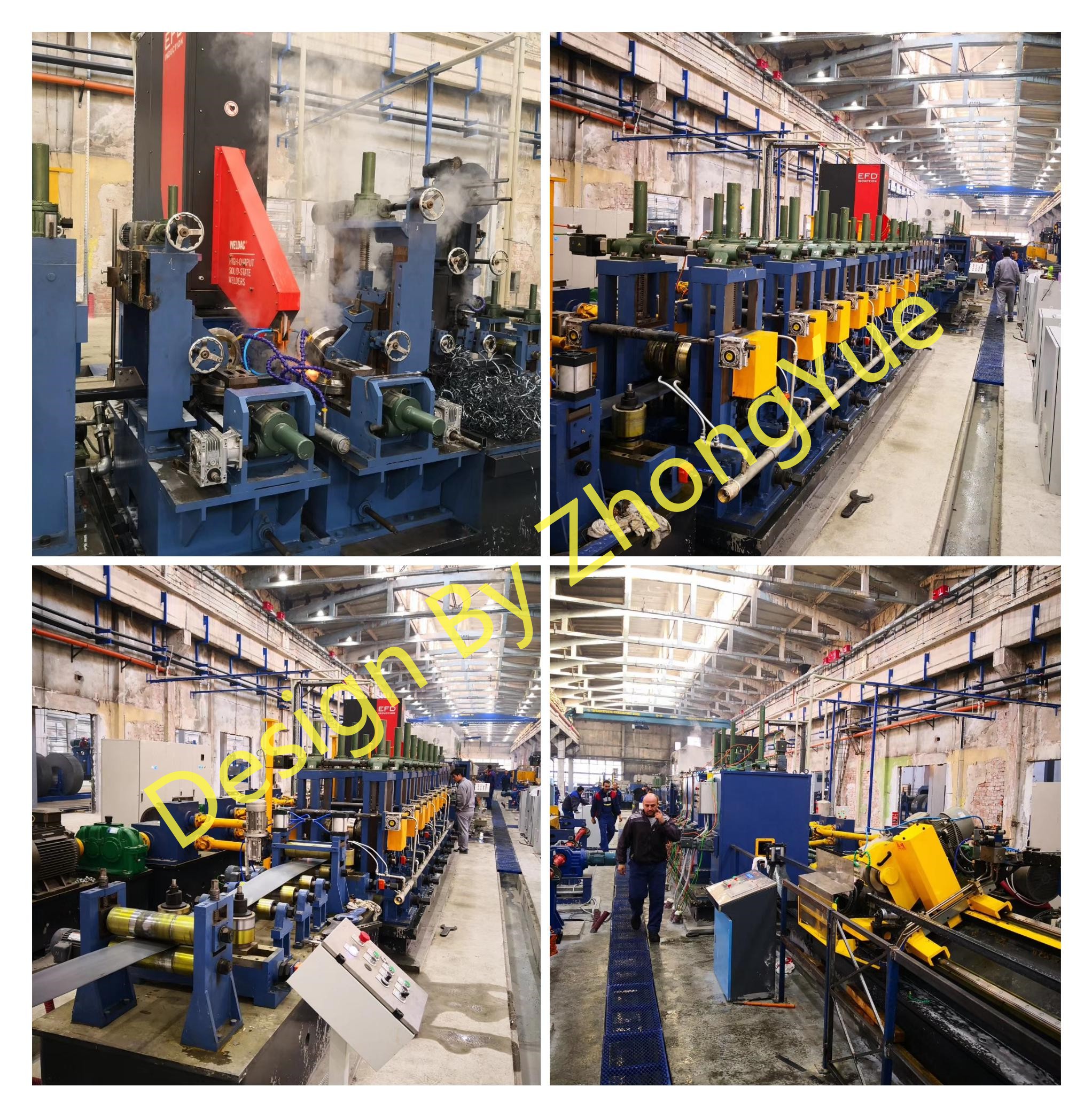

High Efficient Anhydrous Welding Tube Mill Machine Aluminum Strip Pipe Making Machine Images
